Hebei Xinao Technology Co., Ltd

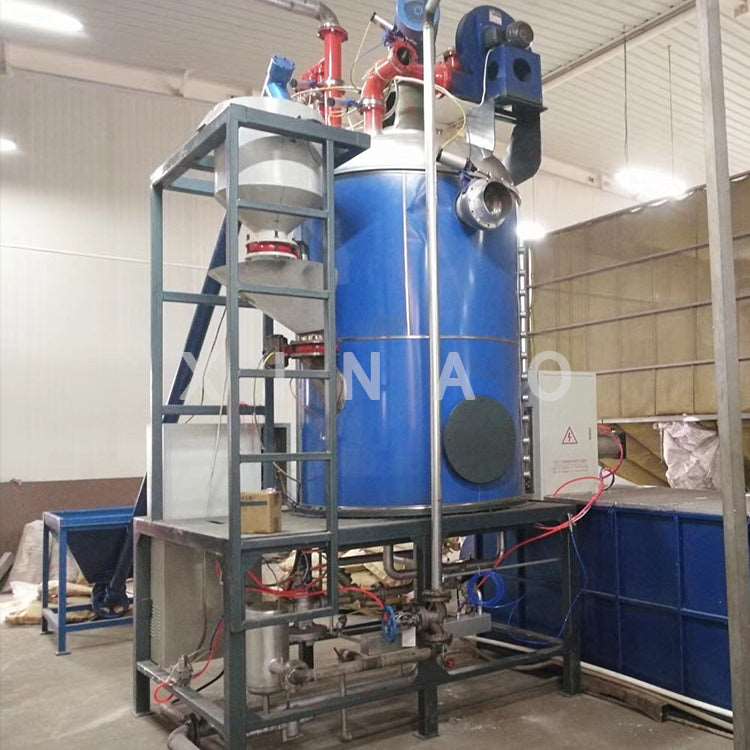

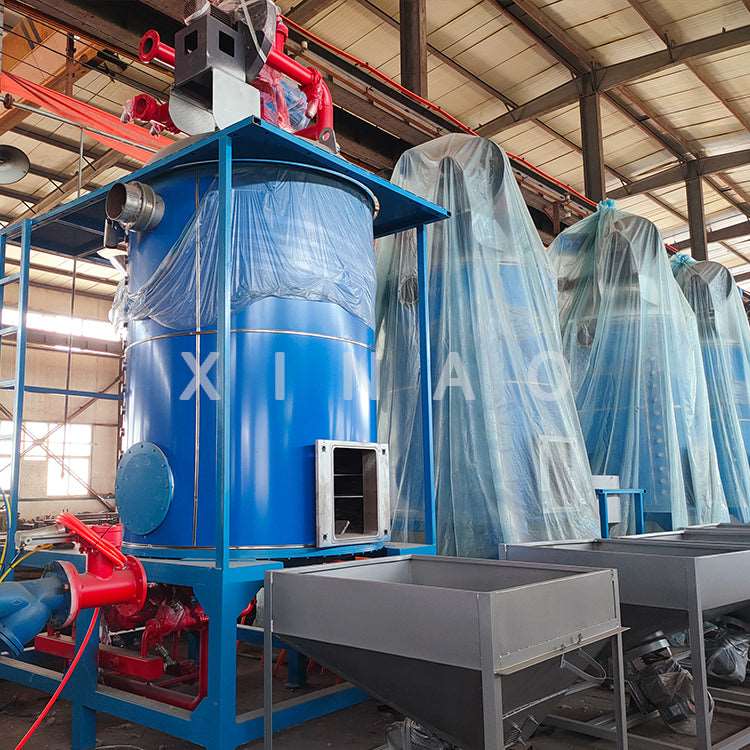

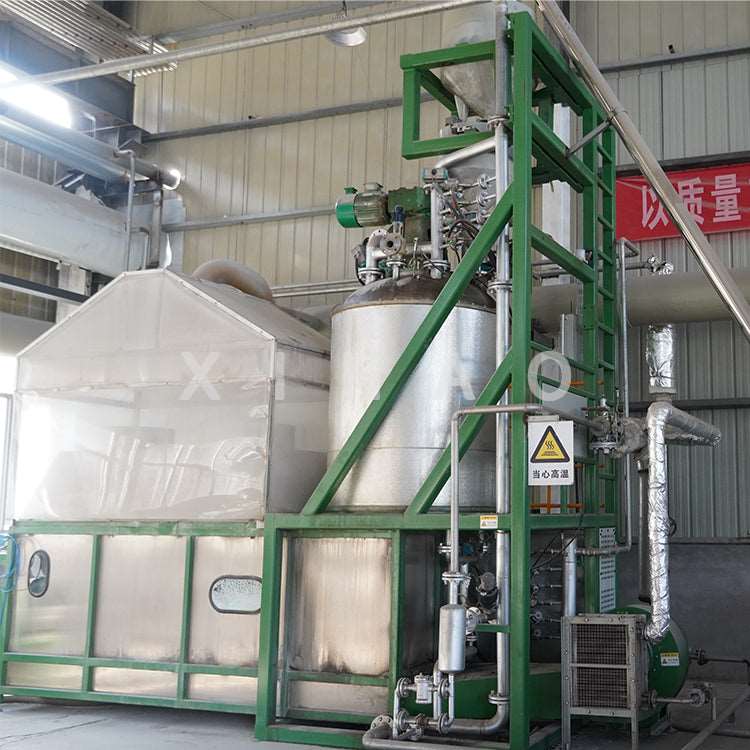

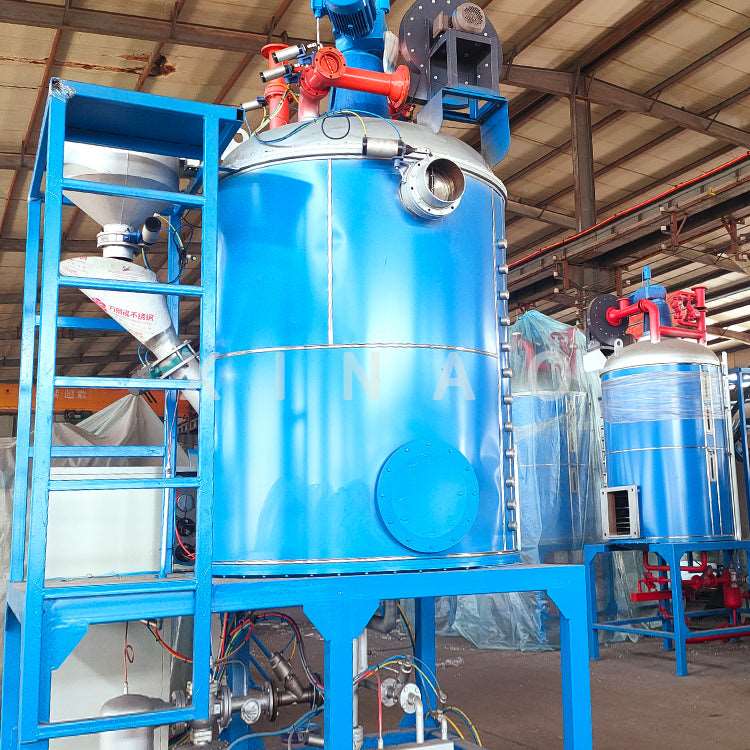

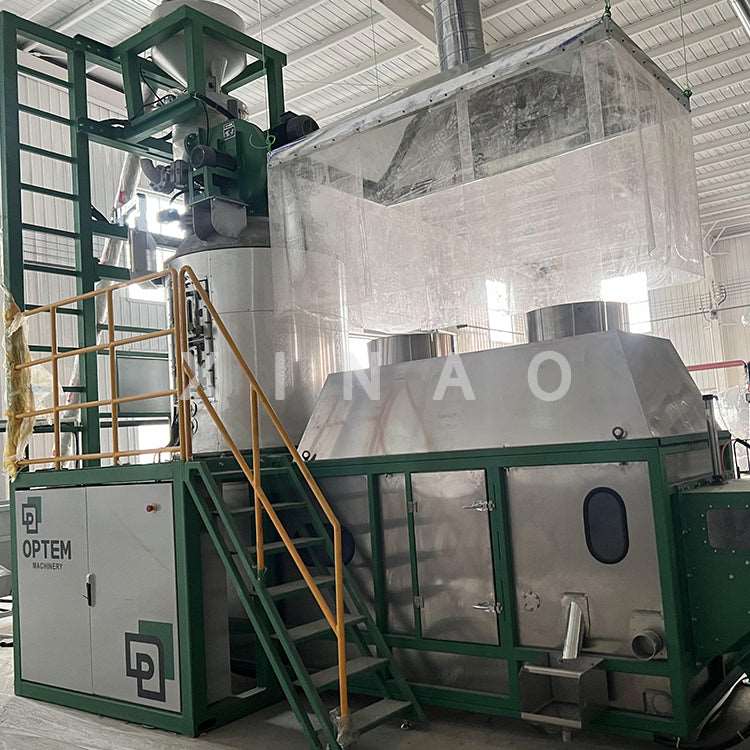

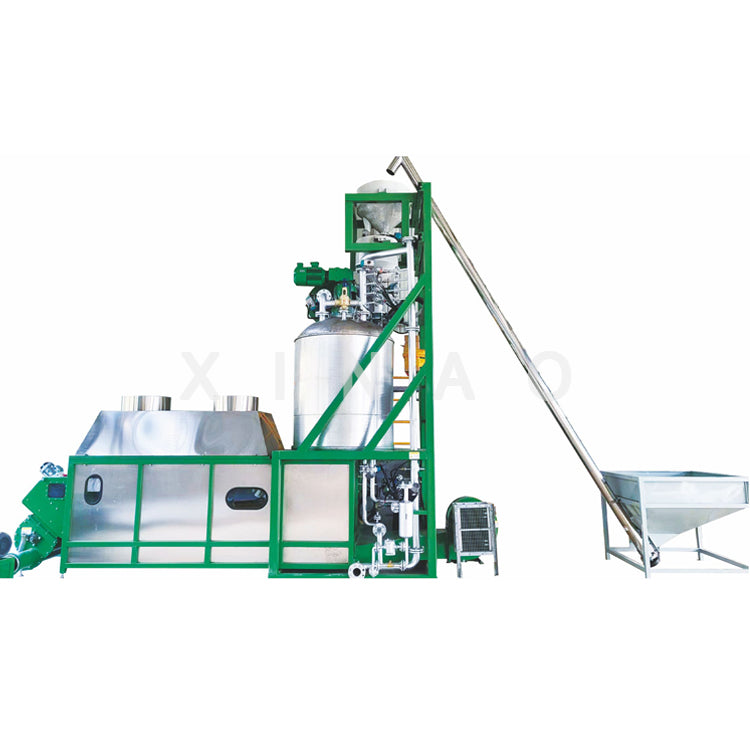

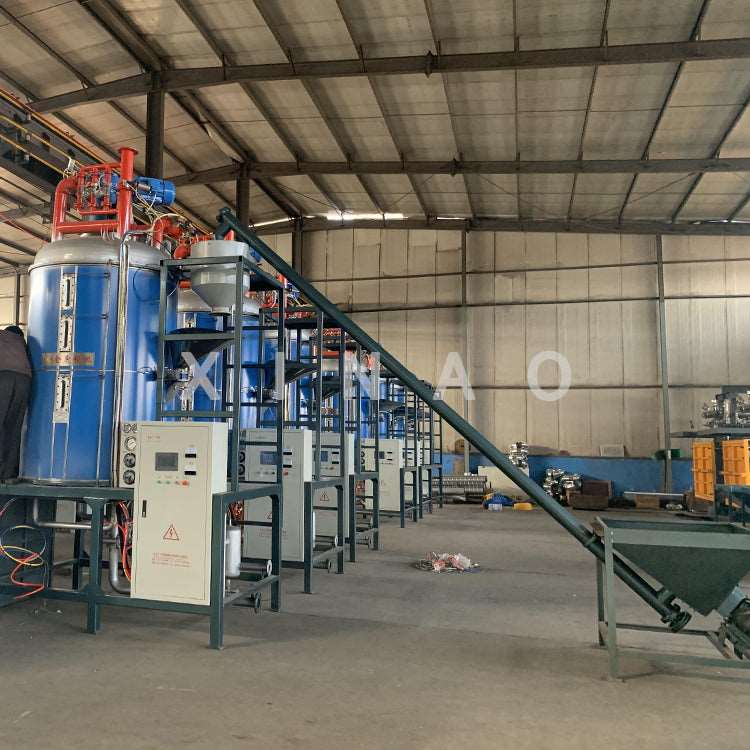

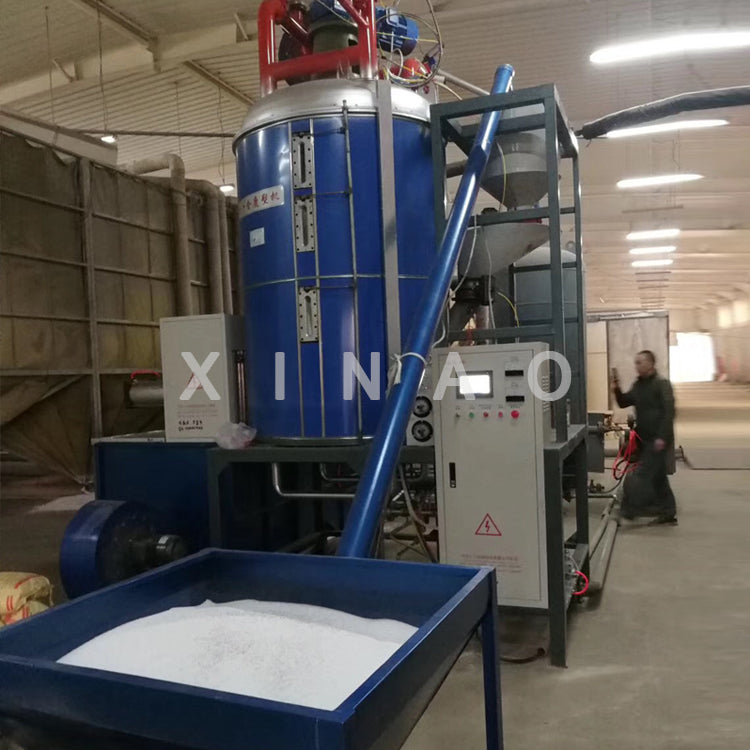

EPS Pre Expander Machine

EPS Pre Expander Machine

High Precision EPS Foam Pre expander

The High Precision Foam Pre expander machine, In the aspect of material level control, the vibrating material level meterimported from Germany can correctly sense the rising degree of foam particles.accurately control the foam material level, maintain the foam specifc gravitydeviation to the minimum value, and realize the uniform density of raw material particles.

Item Project Unit Parameter
Staving diameter mm φ1200
altitude mm 1500
Vapour system The main tube pressure bar 4~5
Pipeline interface mm DN40
Steam valve mm DN40
Working pressure bar 1~1.5
Air system The main tube pressure bar 6~8
Pipeline interface mm DN40
Working pressure bar 6~8
Exhaust system Pipeline interface mm DN100
Discharge capacity Outlet of sewage pipe mm DN80
Installed power Stir the motor kw 4
The top motor kw 1.5
Feed the motor kw 2.2
Dry motor kw 4
Feed motor kw 7.5
Turn plate motor kw 1.1
Broken motor kw 0.55
Bubble density kg/m³ 12-30
Density error ≤土3%
