EPS Cutting Machine
EPS Cutting Machine
Automatic Wire Tuning Cutting Machine

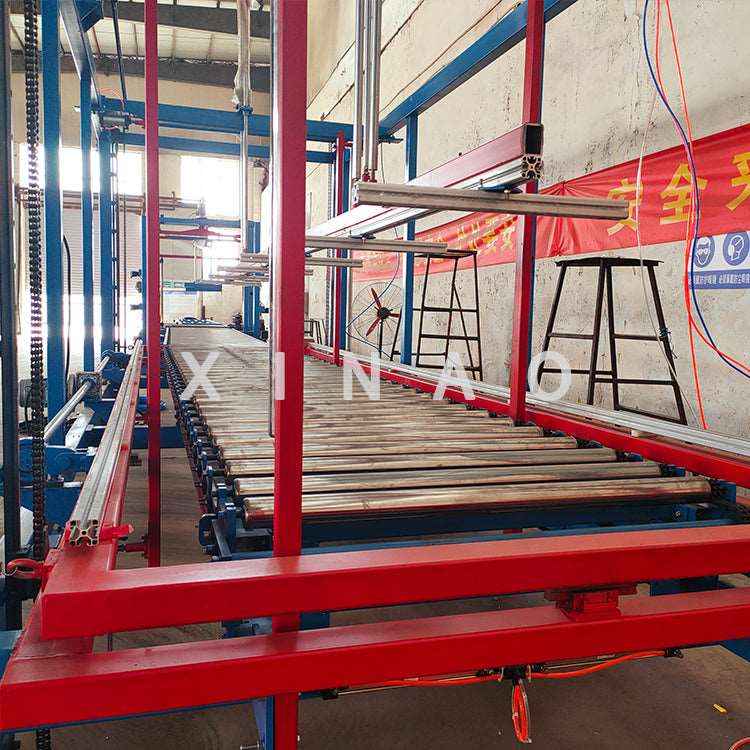

The EPS Cutting Machine features a main frame constructed from aluminum alloy profiles, connected with specialized joints for exceptional stability and performance. Its design ensures a reasonable structure and high precision. The Multifunctional EPS Foam Cutting Machine is equipped with an automatic wire-setting system, allowing for efficient adjustments to cutting sizes, improving operational efficiency, and saving energy. Additionally, the Multifunctional Hot Wire EPS Foam Cutting Machine integrates frequency control technology, enabling a wide range of stable, stepless speed adjustments (0-4m/min). This makes it ideal for precise low-speed cutting and rapid high-speed retraction.
Auto Wire Tuning Cutting Machine Parameter
Name | Main technical parameters |
---|---|
Machine exterior size | Long 5200mm* width 2300mm* height 2500mm |
The working surface effective volume | Long 2200mm X width 1200mm X height 1200mm |
Maximum number of electric heating wire | 25 flat cut wire, vertical: 15 horizontal, 15 vertical |
Processing speed | 0-2000mm/ min (adjustable) |
Cutting accuracy | ±2mm |
Operation control system | Touch screen +PLC |
Workbench material structure | lron, rectangular square tube is welded |
Working voltage | AC380V/50HZ.(220V is customizable) |
Toning method | Three-way automatic wire tuning |
Electric heating wire material, silk diameter | Nickel-chromium Cr25Ni20,0.4mm |
Heed transformer output voltage | The 30- -80V is adjustable |
Total installed power | 12KW |
